X/¹H Small Dual Tuned Surface Coil

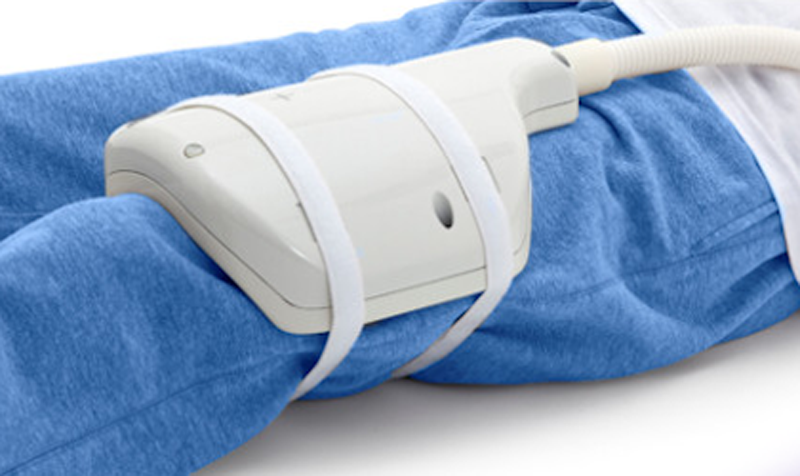

7 cm diameter coil designed for applications on the thigh, calf muscle and occipital lobe.

• Robust rigid design, no manual tuning required.
• Dual-tuned (1H/X), X-Nuclei include ¹³C, ³¹P, ²³Na, ¹²⁹Xe, ²H or ⁷Li.
• Also available single tuned (X).
• High quality ¹H images of Leg: calf, thigh and knee. along with capability to produce optimised ¹H decoupled spectroscopy.

Other features include:

• Designed for minimised SAR.
• Integrated interchangeable reference sample.
• External alignment indicator.

• Available for 3.0 T MR systems for all manufacturers:
  • Philips (Achieva, Ingenia), Siemens (Trio, Verio, Skyra, Prisma, Vida) and GE (HDx, MR750, Premier).
• All of our RF coils can be provided with bespoke multinuclear phantoms. These provide:
  • Tissue equivalent body loading, reference sample containers, and are designed for use in QA, coil calibration and spectral optimisation.
• Coil files are available for all the latest software releases.
